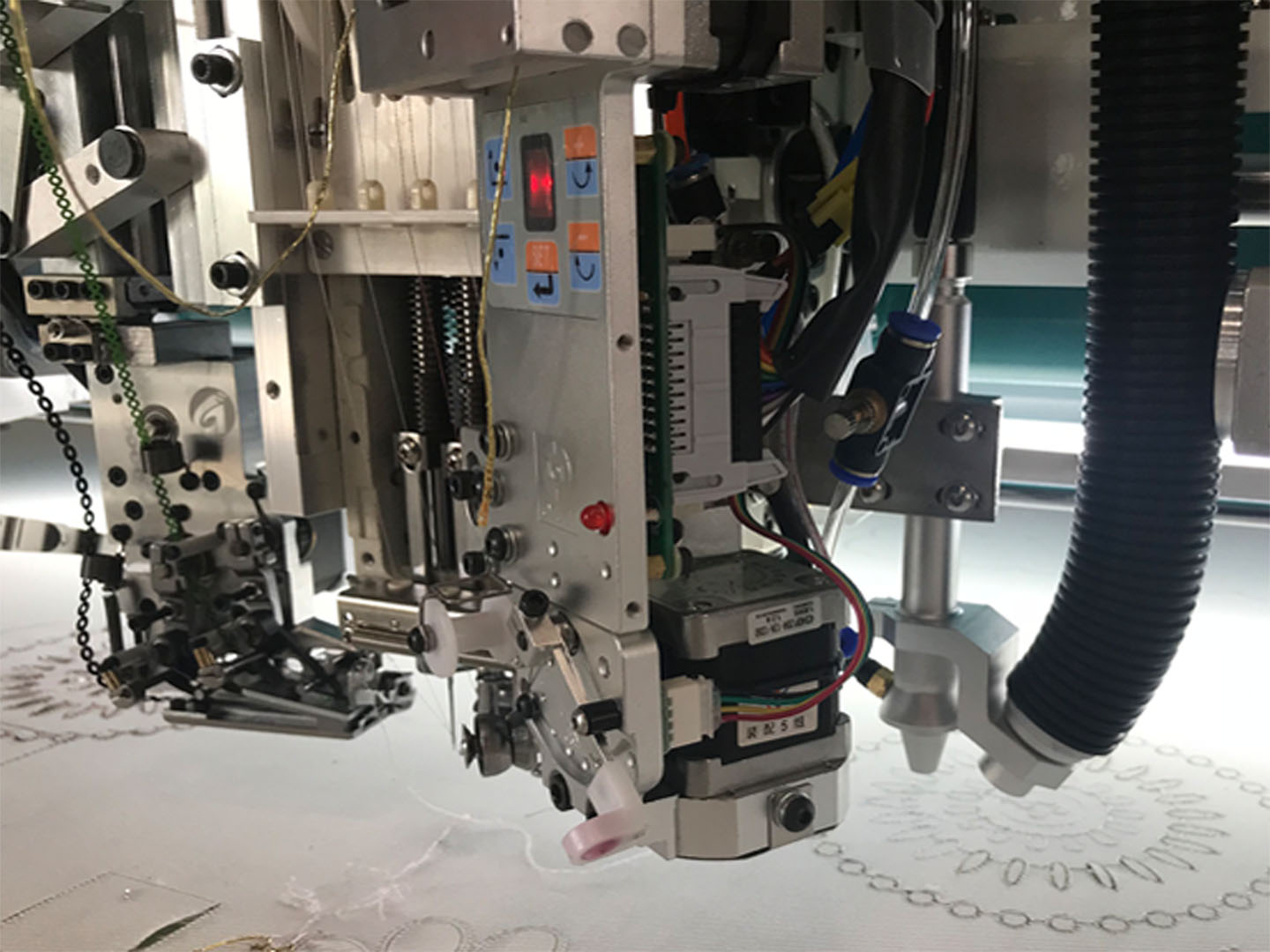

• HTM-F-LS-CR-615-600X700X750 (Laser Embroidery Machine)

    P Series → HTM-F-LS-CR-615-600X700X750


    Origin Chaina, Japan, Korea
    Brand Name HTM
    Model Number HTM-F-LS-CR-615-450X67X750 (Laser Embroidery Machine)
    Minimum Order Quantity 1 set
    Price         Or Call:
    Packing Detail  Waterproof vacuumed wrapper Packing inside
    Delivery Time 45 working days after getting your deposit or LC
    Payment Terms LC AT Sight, T/T and PO
    Supply Ability 1000 sets/year
    Trade terms Ex Works (EXW), Free On Board (FOB) & Cost, insurance and freight (CIF), Door to Door
    Warranty 1 year

    10 inch Color LED monitor with Dahao computer. Next Generation design of operating panel, USB input port of latest Version, LED display showing real time stitching and calculation. Pre-sew design trace capable Emergency stop, (1). Original Dahao Computer, with usb and UTC. (2). Main motor: Original Dahao servo 2.8 kw with cooling fan, (2 sets), XY Motor Original Dahao servo 1.5+1.5=3.0kw (2 sets) with cooling fan, (3). Beam: heavy body 400*600*14mm, 3L (back) support up-to Floor. (4). Original Japanese Koban brand rotary hook and Bobbin Case. (5). Italian Original Megydane belt 50mm (6). XY driver: linear driver X3 Y6+1 (7). Standard accessories and free spare parts (8). Main shaft: 18mm stain less steel (9) Thread Lock System (10) Double Lever (11) Head Jump motor All bearing is Made in Japan LED Light Under The Table and Beam, Auto Oiling System, Low Noise Technology, Anti Vibrating Device. One machine 10 legs. Low vibration. Body color Green/Gray/Platinum. Color-changing System: Automatic color change System avaliable in this machine. Thread trimming system: Automatic tread trimmer .The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, bringing colorful and diversified output. Thread break detecting: Thread break detection. Thread take-up spring or chopping wheel. Machine will auto stop and show the thread breakage head position if the thread break or the upper and bobbin thread used up during embroidery. Memory: 10 Million, Design Number: 1000. After the design file input computer can keep forever, the memory storage up to 200,000,000 stitches and store 1000 samples Language: English, Chines.

    Condition Brand New with Latest Technology and Top Quality
    Beam(Body) Heavy beam  ( 400 x 600 x 14 mm) with 3 back support ( L SUPPORT)
    Machine Color Green / Platinum / White
    HEAD NUMBER Flat -15 head, Mix Cord-15 head, Laser 7 head, Twines (2color) Sequin
    HEAD INTERVAL 600 mm | Customize Option Avaliable
    EMBROIDERY WORK  AREA 700 X 750 mm | Option Avaliable
    Computer System  Dahao Computer (Latest Virson 2019) | Model No.: A18
    DISPLAY/SCREEN   10 inch Color LED tuch screen Monitor.
    Operating Software  Dahao
    Main Motor Dahao Servo Motor (4.7 kw & 3.8 kw)
    XY motor and Linear Driver  (X3 & Y6+2) Servo | 1.5kw + 1.5kw
    Thread Trimming System WITH AUTO CUTTER(UTC)
    BELT  Italian MegaDyne-Belt - 50MM for X3 and Y6+2 | Option Avaliable
    PANTOGRAPH HEAVY  Aluminium (Bearing Base Pantograph)  and other option avaliable
    Bearing NSK Japan
    Rotary Hooks Original Japanese Koban Rotary Hooks
    RECEPROCATOR Double recprocator, High Quality
    USB Port System One USB Port with Latest Version
    Working Table Thickness 30 mm waterproof table with round edge rubber support
    Main Shaft  Harden and Ground with 20 mm
    Machine Wire Holes All Holes of Machine  will cover with Rubber protection
    Machine Head  Round Edge and Flat Edge
    Light  LED light under Table and Under Beam,
    Machine Working  Speed 1200 rpm
    Power source Single phase:220V

    Up to 230 heads embroidery machine we are making
