RD Series CCD Rice Color Sorter

Product Name: RD Series CCD Rice Color Sorter

Product Details

Application Scope:

RD Series CCD Rice Color Sorter is designed to remove different color kernel in rice mill and parboiled rice mill.

Features:

1. High-end CCD - Unique Algorithm, Accurate Rejection 2. World-class sorting ability on scab and light yellow 3. Unbelievable long-term running stablility 5. Unique customized 2048 CCD sensor and LED light source—super effectively detects the scab and light yellow, reducing use-cost and ensure the long-term running stability 6. Open frame and special discharging system—realize easy installation, operation and maintenance 7. Strong expanding function--one button AI and remote feeding control etc. enables flexible operation; reserved interface for software upgrading enables the usage of latest sorting technology 8. Self-detection function automatically detects the fault of ejectors, air pressure, blowers, lens, processing board, control board and background plate etc. 9. Specialized ejector assembly—reduces carryover ratio with working life over 1 billion blow times 10. Imported customized MEYER-50 lens—minimum resolution 150 line pairs meets the need for detailed images 11. Imported customized MEYER-50 lens 12. Brand new ejector assembly 13. LED light source

Tcehnical parameters:

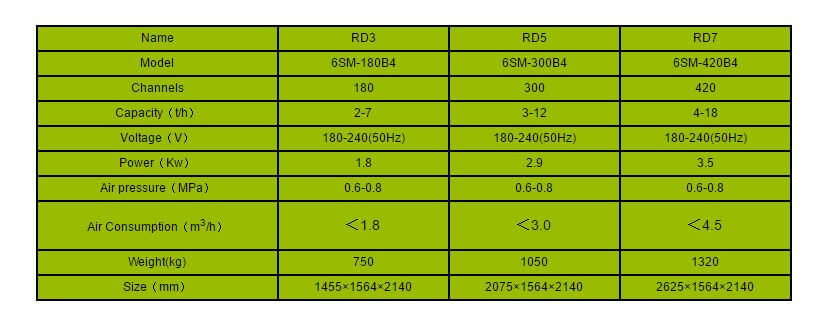

RD Series CCD Rice Color Sorter Technical Data
